中华心脏与心律电子杂志 ›› 2026, Vol. 14 ›› Issue (01) : 11 -18. doi: 10.3877/cma.j.issn.2095-6568.2026.01.002

脉冲电场消融

心脏脉冲电场消融的过去、现在与未来
赵晓溪, 王如兴()
  1. 214023 无锡,南京医科大学附属无锡人民医院心内科
  • 收稿日期:2025-04-20 出版日期:2026-03-25
  • 通信作者: 王如兴
  • 基金资助:
    国家自然科学基金(82370342); 江苏省自然科学基金(BK20231145)

The past, present and future of cardiac pulsed field ablation

Xiaoxi Zhao, Ruxing Wang()

  1. Department of Cardiology, Wuxi People's Hospital Affiliated to Nanjing Medical University, Wuxi 214023, China
  • Received:2025-04-20 Published:2026-03-25
  • Corresponding author: Ruxing Wang
引用本文:

赵晓溪, 王如兴. 心脏脉冲电场消融的过去、现在与未来[J/OL]. 中华心脏与心律电子杂志, 2026, 14(01): 11-18.

Xiaoxi Zhao, Ruxing Wang. The past, present and future of cardiac pulsed field ablation[J/OL]. Chinese Journal of Heart and Heart Rhythm(Electronic Edition), 2026, 14(01): 11-18.

心房颤动作为全球最常见的持续性心律失常,其导管消融治疗正经历从传统热能技术如导管射频消融及冷冻消融向非热能技术即脉冲电场消融的革命性转变。脉冲电场消融基于不可逆电穿孔原理,通过高电压短脉冲电场选择性破坏心肌细胞膜结构,实现组织特异性消融,同时规避热损伤相关并发症。

As the most common sustained cardiac arrhythmia worldwide, atrial fibrillation is undergoing a transformative shift in catheter ablation therapy—from conventional thermal techniques, such as radiofrequency ablation and cryoablation, toward non-thermal technology, namely pulsed field ablation. Based on the principle of irreversible electroporation, pulsed field ablation employs high-voltage, short-duration electric fields to selectively disrupt myocardial cell membrane structures, achieving tissue-specific ablation while avoiding thermal injury-related complications.

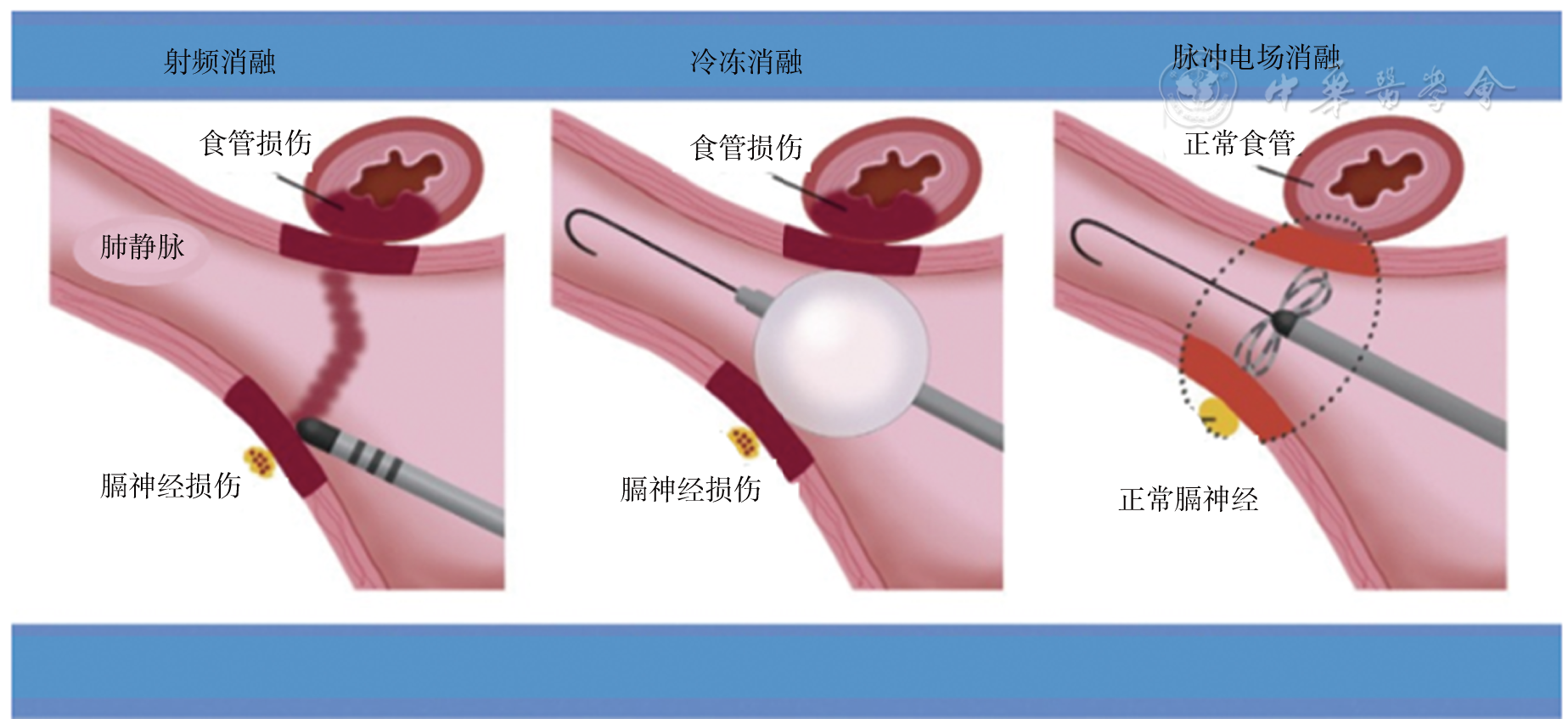

图1 脉冲电场消融、射频消融和冷冻球囊消融工作原理图17
[1]
Hättasch R, Tscholl V, Hindricks G, et al. European Society of Cardiology (ESC) Guidelines on atrial fibrillation 2024 : what is new and what is important?[J]. Herz, 2025, 50(1):3-7.
[2]
Katov L, Teumer Y, Bothner C, et al. Comparative analysis of real-world clinical outcomes of a novel pulsed field ablation system for pulmonary vein isolation: the prospective CIRCLE-PVI study[J]. J Clin Med, 2024, 13(23):7040.
[3]
Nair DG, Gomez T, De Potter T. VARIPULSE: A step-by-step guide to pulmonary vein isolation[J]. J Cardiovasc Electrophysiol, 2024, 35(9):1817-1827.
[4]
Duytschaever M, Račkauskas G, De Potter T, et al. Dual energy for pulmonary vein isolation using dual-energy focal ablation technology integrated with a three-dimensional mapping system: SmartfIRE 3-month results[J]. Europace, 2024, 26(5):euae088.
[5]
Schiavone M, Solimene F, Moltrasio M, et al. Pulsed field ablation technology for pulmonary vein and left atrial posterior wall isolation in patients with persistent atrial fibrillation[J]. J Cardiovasc Electrophysiol, 2024, 35(6):1101-1111.
[6]
Neumann E, Rosenheck K. Permeability changes induced by electric impulses in vesicular membranes[J]. J Membr Biol, 1972, 10(3):279-290.
[7]
唐闽. 脉冲电场消融治疗心房颤动[J/OL].中华心脏与心律电子杂志, 2022, 10(1):27-31.
[8]
Maor E, Sugrue A, Witt C, et al. Pulsed electric fields for cardiac ablation and beyond: a state-of-the-art review[J]. Heart Rhythm, 2019, 16(7):1112-1120.
[9]
Gross D, Loew LM, Webb WW. Optical imaging of cell membrane potential changes induced by applied electric fields[J]. Biophys J, 1986, 50(2):339-348.
[10]
Batista Napotnik T, Polajžer T, Miklavčič D. Cell death due to electroporation - a review[J]. Bioelectrochemistry, 2021, 141:107871.
[11]
Chun KJ, Miklavčič D, Vlachos K, et al. State-of-the-art pulsed field ablation for cardiac arrhythmias: ongoing evolution and future perspective[J]. Europace, 2024, 26(6):euae134.
[12]
Muralidharan A, Rems L, Kreutzer MT, et al. Actin networks regulate the cell membrane permeability during electroporation[J]. Biochim Biophys Acta Biomembr, 2021, 1863(1):183468.
[13]
Kotnik T, Rems L, Tarek M, et al. Membrane electro- poration and electropermeabilization: mechanisms and models[J]. Annu Rev Biophys, 2019, 48:63-91.
[14]
Rems L, Viano M, Kasimova MA, et al. The contribution of lipid peroxidation to membrane permeability in electropermeabilization: a molecular dynamics study[J]. Bioelectrochemistry, 2019, 125:46-57.
[15]
Reddy VY, Neuzil P, Koruth JS, et al. Pulsed field ablation for pulmonary vein isolation in atrial fibrillation[J]. J Am Coll Cardiol, 2019, 74(3):315-326.
[16]
Jacobs EJ, Rubinsky B, Davalos RV. Pulsed field ablation in medicine: irreversible electroporation and electro- permeabilization theory and applications[J]. Radiol Oncol, 2025, 59(1):1-22.
[17]
Wittkampf FH, van Driel VJ, van Wessel H, et al. Feasibility of electroporation for the creation of pulmonary vein ostial lesions[J]. J Cardiovasc Electrophysiol, 2011, 22(3):302-309.
[18]
Reddy VY, Koruth J, Jais P, et al. Ablation of atrial fibrillation with pulsed electric fields: an ultra-rapid, tissue-selective modality for cardiac ablation[J]. JACC Clin Electrophysiol, 2018, 4(8):987-995.
[19]
Lavee J, Onik G, Mikus P, et al. A novel nonthermal energy source for surgical epicardial atrial ablation: irreversible electroporation[J]. Heart Surg Forum, 2007, 10(2):E162-E167.
[20]
Hong J, Stewart MT, Cheek DS, et al. Cardiac ablation via electroporation[J]. Annu Int Conf IEEE Eng Med Biol Soc, 2009, 2009:3381-3384.
[21]
van Driel VJ, Neven KG, van Wessel H, et al. Pulmonary vein stenosis after catheter ablation: electroporation versus radiofrequency[J]. Circ Arrhythm Electrophysiol, 2014, 7(4):734-738.
[22]
Koruth J, Kuroki K, Iwasawa J, et al. Preclinical evaluation of pulsed field ablation: electrophysiological and histological assessment of thoracic vein isolation[J]. Circ Arrhythm Electrophysiol, 2019, 12(12):e007781.
[23]
Yavin H, Shapira-Daniels A, Barkagan M, et al. Pulsed field ablation using a lattice electrode for focal energy delivery: biophysical characterization, lesion durability, and safety evaluation[J]. Circ Arrhythm Electrophysiol, 2020, 13(6):e008580.
[24]
Song Y, Zheng J, Fan L. Nonthermal irreversible electroporation to the esophagus: evaluation of acute and long-term pathological effects in a rabbit model[J]. J Am Heart Assoc, 2021, 10(22):e020731.
[25]
Im SI, Higuchi S, Lee A, et al. Pulsed field ablation of left ventricular myocardium in a swine infarct model[J]. JACC Clin Electrophysiol, 2022, 8(6):722-731.
[26]
Turagam MK, Neuzil P, Schmidt B, et al. Safety and effectiveness of pulsed field ablation to treat atrial fibrillation: one-year outcomes from the MANIFEST-PF registry[J]. Circulation, 2023, 148(1):35-46.
[27]
Reddy VY, Dukkipati SR, Neuzil P, et al. Pulsed field ablation of paroxysmal atrial fibrillation: 1-year outcomes of IMPULSE, PEFCAT, and PEFCAT II[J]. JACC Clin Electrophysiol, 2021, 7(5):614-627.
[28]
Ekanem E, Neuzil P, Reichlin T, et al. Safety of pulsed field ablation in more than 17,000 patients with atrial fibrillation in the MANIFEST-17K study[J]. Nat Med, 2024, 30(7):2020-2029.
[29]
Reddy VY, Gerstenfeld EP, Natale A, et al. Pulsed field or conventional thermal ablation for paroxysmal atrial fibrillation[J]. N Engl J Med, 2023, 389(18):1660-1671.
[30]
Verma A, Boersma L, Haines DE, et al. First-in-human experience and acute procedural outcomes using a novel pulsed field ablation system: the PULSED AF pilot trial[J]. Circ Arrhythm Electrophysiol, 2022, 15(1):e010168.
[31]
Mekary W, Merchant FM. Pulsed field ablation for atrial fibrillation: moving the field forward?[J]. J Cardiovasc Electrophysiol, 2023, 34(10):2027-2028.
[32]
Li X, Huang L, Li J, et al. Tricuspid isthmus ablation with pulsed-field power by linear catheter: a case report[J]. Eur Heart J Case Rep, 2024, 8(1):ytad601.
[33]
Ruwald MH, Johannessen A, Worck R, et al. Feasibility and midterm effectiveness of focal pulsed field ablation for ventricular arrhythmias[J]. Heart Rhythm, 2025 :S1547-5271(25)00129-00128.
[34]
Muthu P, Prajapati P, Vemulapalli H, et al. Ablation of premature ventricular complexes originating from papillary muscle using pulsed field energy: the first in USA experience[J]. Heart Rhythm, 2024 :S1547-5271(24)03532-03532X.
[35]
Qiu J, Dai M, Bai Y, et al. Potential application of pulsed field ablation in ventricular arrhythmias[J]. Medicina (Kaunas), 2023, 59(4):723.
[36]
Mestrovic IP, Breskovic T, Markovic M, et al. Ablation of epicardial ventricular focus through coronary sinus using pulsed-field ablation. a case report[J]. J Cardiovasc Electrophysiol, 2024, 35(4):856-861.
[37]
Li F, Gong A, Hu H, et al. Pulsed field ablation of paroxysmal supraventricular tachycardia: a prospective multicenter single-arm study in China[J]. Circ Arrhythm Electrophysiol, 2024, 17(12):e013206.
[38]
沈才杰, 戴嘉挺, 贾振宇, 等. 脉冲电场消融对犬房室传导功能的影响[J/OL]. 中华心脏与心律电子杂志, 2023, 11(4):222-229.
[39]
Lozano-Granero C, Franco E, Matía-Francés R, et al. Electroporation saves the day again: pulsed-field ablation for phrenic nerve-sparing in right atrial tachycardia[J]. J Cardiovasc Electrophysiol, 2024, 35(10):2071-2075.
[40]
Zeng R, Li F, Jiang J, et al. The safety and feasibility of pulsed-field ablation in atrioventricular nodal re-entrant tachycardia: first-in-human pilot trial[J]. JACC Clin Electrophysiol, 2024, 10(1):82-92.
[41]
Neven K, van Es R, van Driel V, et al. Acute and long-term effects of full-power electroporation ablation directly on the porcine esophagus[J]. Circ Arrhythm Electrophysiol, 2017, 10(5):e004672.
[42]
Koruth JS, Kuroki K, Kawamura I, et al. Focal pulsed field ablation for pulmonary vein isolation and linear atrial lesions: a preclinical assessment of safety and durability[J]. Circ Arrhythm Electrophysiol, 2020, 13(6):e008716.
[43]
Zhao Z, Chen Y, Wu B, et al. Pulsed-field ablation using a novel ablation-mapping integrated system for pulmonary vein isolation-a preliminary animal study[J]. J Cardiovasc Dev Dis, 2022, 9(12):425.
[44]
Hsu JC, Gibson D, Banker R, et al. In vivo porcine characterization of atrial lesion safety and efficacy utilizing a circular pulsed-field ablation catheter including assessment of collateral damage to adjacent tissue in supratherapeutic ablation applications[J]. J Cardiovasc Electrophysiol, 2022, 33(7):1480-1488.
[45]
Koruth J, Kawamura I, Dukkipati SR, et al. Preclinical assessment of the feasibility, safety and lesion durability of a novel 'single-shot' pulsed field ablation catheter for pulmonary vein isolation[J]. Europace, 2023, 25(4):1369-1378.
[46]
Cochet H, Nakatani Y, Sridi-Cheniti S, et al. Pulsed field ablation selectively spares the oesophagus during pulmonary vein isolation for atrial fibrillation[J]. Europace, 2021, 23(9):1391-1399.
[47]
Nies M, Watanabe K, Kawamura I, et al. Endocardial pulsed field ablation and the oesophagus: are atrio-oesophageal fistulas now history? [J]. Arrhythm Electrophysiol Rev, 2024, 13:e02.
[48]
Howard B, Haines DE, Verma A, et al. Characterization of phrenic nerve response to pulsed field ablation[J]. Circ Arrhythm Electrophysiol, 2022, 15(6):e010127.
[49]
Pansera F, Bordignon S, Bologna F, et al. Catheter ablation induced phrenic nerve palsy by pulsed field ablation-completely impossible? a case series[J]. Eur Heart J Case Rep, 2022, 6(9):ytac361.
[50]
Mansour M, Gerstenfeld EP, Patel C, et al. Pulmonary vein narrowing after pulsed field versus thermal ablation[J]. Europace, 2024, 26(2):euae038.
[51]
Reddy VY, Gerstenfeld EP, Natale A, et al. Pulsed field or conventional thermal ablation for paroxysmal atrial fibrillation[J]. N Engl J Med, 2023, 389(18):1660-1671.
[52]
Reddy VY, Petru J, Funasako M, et al. Coronary arterial spasm during pulsed field ablation to treat atrial fibrillation[J]. Circulation, 2022, 146(24):1808-1819.
[53]
Venier S, Vaxelaire N, Jacon P, et al. Sever acute kidney injury related to haemolysis after pulsed filed ablation for atrial fibrillation[J]. Europace, 2023, 26(1):euad371.
[54]
Mohanty S, Casella M, Compagnucci P, et al. Acute kidney injury resulting from hemoglobinuria after pulsed-field ablation in atrial fibrillation: is it preventable?[J]. JACC Clin Electrophysiol, 2024, 10(4):709-715.
[55]
Neven K, Füting A, Byrd I, et al. Absence of (sub-)acute cerebral events or lesions after electroporation ablation in the left-sided canine heart[J]. Heart Rhythm, 2021, 18(6):1004-1011.
[56]
Ekanem E, Reddy VY, Schmidt B, et al. Multi-national survey on the methods, efficacy, and safety on the post-approval clinical use of pulsed field ablation (MANIFEST-PF)[J]. Europace, 2022, 24(8):1256-1266.
[57]
Reinsch N, Füting A, Höwel D, et al. Cerebral safety after pulsed field ablation for paroxysmal atrial fibrillation[J]. Heart Rhythm, 2022, 19(11):1813-1818.
[58]
Iacopino S, Colella J, Dini D, et al. Sedation strategies for pulsed-field ablation of atrial fibrillation: focus on deep sedation with intravenous ketamine in spontaneous respiration[J]. Europace, 2023, 25(9):euad230.
